Mechanism to fire scheduled signals. More...

#include <PushSequencer.h>

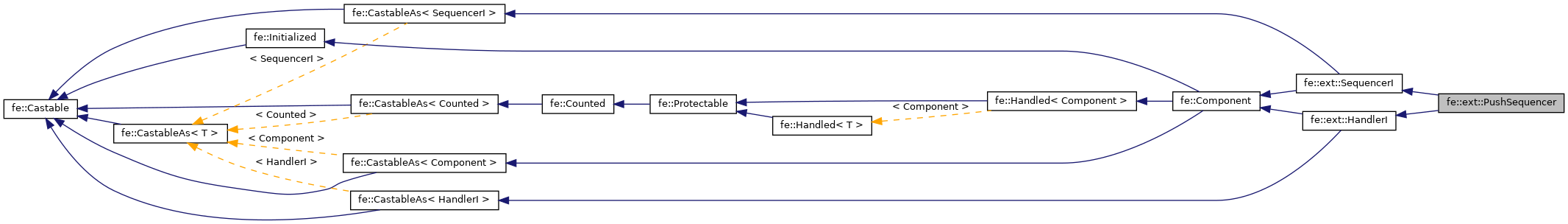

Inheritance diagram for fe::ext::PushSequencer:

[legend]

Public Member Functions
virtual U32	getCurrentTime (void)

virtual void	setTime (U32 counter)

virtual Record	add (sp< Layout > spLayout, U32 startTime, U32 interval)

virtual Record	lookup (sp< Layout > spLayout, U32 interval)

virtual bool	remove (Record pulse)

virtual void	handle (Record &signal)

virtual void	handleBind (sp< SignalerI > spSignalerI, sp< Layout > spLayout)

Public Member Functions inherited from fe::Component
const String &	name (void) const
	Return the components chosen name. More...

const String	verboseName (void) const
	Return the annotated chosen name. More...

void	setName (const String &name)
	Rename the component to anything you want. More...

hp< Registry >	registry (void) const
	Get the Registry that created this component. More...

void	adjoin (sp< Component > spComponent)
	Tie this component's lifetime to another. More...

sp< Component >	create (const String &implementation, BWORD quiet=FALSE) const
	Convienience function to registry()->create() More...

void	disjoin (void)
	Untie component from Hub, if connected. More...

String	factoryName (void)

void	setLibrary (sp< Library > spLibrary)
	Store a reference to the library used to instantiate this component. More...

sp< Library >	library (void)
	Get the library that created the component. More...

void	setFactoryIndex (I32 a_factoryIndex)
	Set the library's factory index. More...

I32	factoryIndex (void)
	Get the library's factory index. More...

void	setSingleton (BWORD set)
	Specify whether component is a singleton. More...

BWORD	isSingleton (void)
	Return whether component is a singleton. More...

virtual void	acquire (void)
	Specialized reference increment. More...

virtual void	release (void)
	Specialized reference decrement. More...

Public Member Functions inherited from fe::Handled< Component >
const hp< Component > &	getHandle (void) const
	Get a safe handle to this object. More...

Public Member Functions inherited from fe::Protectable
virtual I32	protection (void) const

virtual void	protect (void)

virtual void	unprotect (void)

virtual Protectable *	clone (Protectable *pInstance=NULL)

Public Member Functions inherited from fe::Counted
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...

virtual void	abandon (void)
	Decrement the reference count. More...

int	count (void) const
	Return the count of references. More...

void	setName (const String &)

void	trackReference (void *pReference, String what)

void	untrackReference (void *pReference)

void	registerRegion (void *pT, U32 bytes)

Public Member Functions inherited from fe::Initialized
void	initializeAll (void)

void	setActive (bool a_active)

Public Member Functions inherited from fe::ext::HandlerI
virtual void	handleSignal (Record &signal, sp< SignalerI > spSignalerI)

Private Member Functions
void	insert (sp< t_pulse > &a_pulse)

Private Attributes
U32	m_timeOffset

SignalerI *	m_pSignaler

std::list< sp< t_pulse > >	m_pulseList

SystemTicker	m_ticker

Additional Inherited Members
Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)

static U32	trackerCount (void)

Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)

Protected Member Functions inherited from fe::Handled< Component >
void	abandonHandle (void)

Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...

void	suppressReport (void)

Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)

Related Functions inherited from fe::Component
FE_DL_EXPORT void FE_CDECL	checkUnload (sp< Library > &pLibrary, Component *pComponent=NULL)
	Delete the component and unload libraries where appropriate. More...

Detailed Description

Mechanism to fire scheduled signals.

Entries for the sequencer are represented by pulse records which have these four attributes:

time – The time at which to fire the signal.
interval – Interval in which to repeat the signal.
count – Number of times to repeatedly fire the signal. Setting this to zero will repeat an unlimited number of times. A non-zero count is decremented every time the signal is fired, and when decremented form 1 to 0 the signal is removed from the sequencer. A negative count will halt repeating without removing the signal, which is a way to pause repeating.
periodic – The mode to repeat signals.
- 0 – the repeat signal is set to the sequencer handle time plus the interval. This means that the true interval between firings in likely longer than the interval setting, but such signals will never 'fall behind'.
- 1 – The time for a repeat signal is set to the previous time plus the interval. Note that this could lead to the system getting swamped by periodic signals. However, if the computation load varies a lot, this setting could allow repeats to 'catch up'.
- 2 – The time for a repeat signal is set to the previous time plus the interval unless such time has already passed in which case the time is set to the sequencer handle time. This is like setting 1 that will not fall behind.
- 3 – the repeat signal is set to the current time (after the immediate handling of the signal is processed) plus the interval. This is a sort of 'forced yield for a time' mode.

The documentation for this class was generated from the following files:
