OpenGL-specific implementations for DrawI. More...

#include <DrawOpenGL.h>

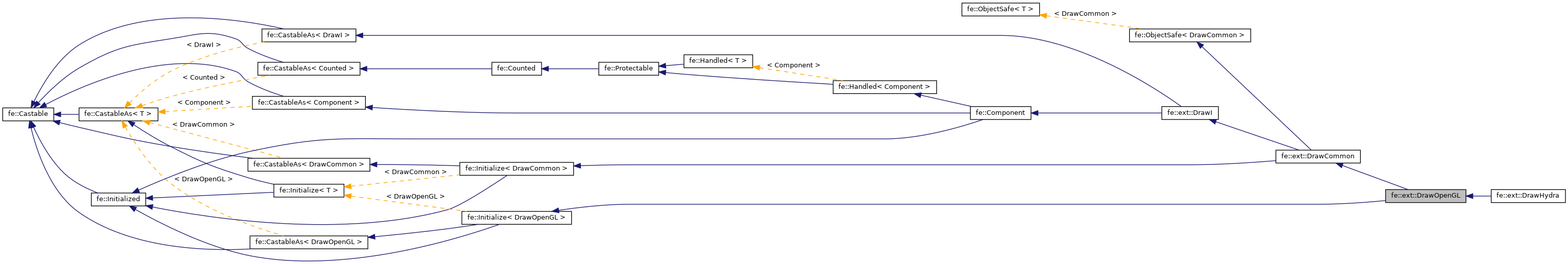

Inheritance diagram for fe::ext::DrawOpenGL:

[legend]

Public Member Functions
void	initialize (void)

virtual BWORD	isDirect (void) const
	Returns TRUE is display is local and rendered directly. More...

virtual void	flush (void)
	Called once after each frame. More...

virtual void	pushMatrixState (void)
	Push transform matrices. More...

virtual void	popMatrixState (void)
	Pop transform matrices. More...

virtual void	pushMatrix (MatrixMode a_mode, Real a_values[16])
	push a new 4x4 matrix on a particular stack More...

virtual void	popMatrix (MatrixMode a_mode)
	pop the top 4x4 matrix from a particular stack More...

virtual void	unbindVertexArray (void)
	currently, sets vertex array to zero in OpenGL More...

virtual void	setBrightness (Real a_brightness)
	set additive lightening More...

virtual void	setContrast (Real a_contrast)
	set multiplicitive light scaling More...

virtual void	setDrawMode (sp< DrawMode > spMode)
	Set rendering mode. More...

virtual sp< FontI >	font (void)
	Get current font. More...

virtual Real	multiplication (void)
	Select the GL-specific index/handle. More...

virtual void	drawPoints (const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color *color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawLines (const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color color, BWORD multiradius, const Real radius, const Vector3i *element, U32 elementCount, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTriangles (const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color, const Array< I32 > vertexMap, const Array< I32 > hullPointMap, const Array< Vector4i > *hullFacePoint, sp< DrawBufferI > spDrawBuffer)

virtual void	drawRectangles (const SpatialVector vertex, U32 vertices, BWORD multicolor, const Color color)
	Draw rectangles. More...

virtual void	drawAlignedText (const SpatialVector &location, const String text, const Color &color)
	Draw screen-aligned single color text. More...

virtual void	drawTransformedPoints (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformedLines (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color color, BWORD multiradius, const Real radius, const Vector3i element, U32 elementCount, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformedTriangles (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color, const Array< I32 > vertexMap, const Array< I32 > hullPointMap, const Array< Vector4i > hullFacePoint, sp< DrawBufferI > spDrawBuffer)

virtual void	drawRaster (sp< ImageI > spImageI, const SpatialVector &location)

virtual sp< DrawBufferI >	createBuffer (void)

Public Member Functions inherited from fe::ext::DrawCommon
void	initialize (void)

virtual sp< DrawMode >	drawMode (void) const
	Get rendering mode. More...

virtual void	pushDrawMode (sp< DrawMode > mode)
	Push rendering mode onto stack. More...

virtual sp< DrawMode >	popDrawMode (void)
	Pop rendering mode from stack. More...

virtual Real	brightness (void)
	get lightening More...

virtual Real	contrast (void)
	get light scaling More...

virtual void	setView (sp< ViewI > spViewI)
	Set current view. More...

virtual sp< ViewI >	view (void) const
	Get current view. More...

virtual void	drawCurve (const SpatialVector vertex, const SpatialVector normal, const Real radius, U32 vertices, BWORD multicolor, const Color color)
	Draw one curve. More...

virtual void	draw (cp< DrawableI > cpDrawableI, const Color *color)
	Draw DrawableI. More...

virtual void	draw (cp< DrawableI > cpDrawableI, const Color *color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawTransformed (const SpatialTransform &transform, cp< DrawableI > cpDrawableI, const Color *color)

virtual void	drawTransformed (const SpatialTransform &transform, cp< DrawableI > cpDrawableI, const Color *color, sp< DrawBufferI > spDrawBuffer)

virtual void	drawBox (const Box2 &box, const Color &color)
	Draw 2D box. More...

virtual void	drawBox (const Box2i &box, const Color &color)
	Draw 2D box with pixel adjustments. More...

virtual void	drawBox (const Box3 &box, const Color &color)
	Draw 3D box. More...

virtual void	drawCircle (const SpatialTransform &transform, const SpatialVector *scale, const Color &color)

virtual void	drawSphere (const SpatialTransform &transform, const SpatialVector *scale, const Color &color)

virtual void	drawCylinder (const SpatialTransform &transform, const SpatialVector *scale, Real baseScale, const Color &color, U32 slices)
	Draw a transformed cylinder or cone. More...

virtual void	drawCylinder (const SpatialVector &location1, const SpatialVector &location2, Real radius1, Real radius2, const Color &color, U32 slices)

virtual void	drawCylinders (const SpatialTransform transform, const SpatialVector scale, const Real baseScale, const U32 slices, U32 cylinders, BWORD multicolor, const Color *color)

virtual void	drawTransformedCylinders (const SpatialTransform &pretransform, const SpatialTransform transform, const SpatialVector scale, const Real baseScale, const U32 slices, U32 cylinders, BWORD multicolor, const Color *color)

virtual void	drawArc (const SpatialTransform &transform, const SpatialVector *scale, Real startangle, Real endangle, const Color &color)

virtual void	drawTransformedPoints (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color color)

virtual void	drawTransformedLines (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color color)

virtual void	drawTransformedCurve (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, const Real radius, U32 vertices, BWORD multicolor, const Color *color)

virtual void	drawTransformedTriangles (const SpatialTransform &transform, const SpatialVector scale, const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color *color)

virtual void	drawTransformedBox (const SpatialTransform &transform, const Box3 &box, const Color &color)

virtual void	drawTransformedBoxes (const SpatialTransform transform, const SpatialVector scale, U32 boxes, BWORD multicolor, const Color *color)

virtual void	drawAxes (Real scale)

virtual void	drawTransformedAxes (const SpatialTransform &transform, Real scale)

virtual void	drawMarker (Real radius, const Color &color)

virtual void	drawTransformedMarker (const SpatialTransform &transform, Real radius, const Color &color)

virtual void	setDrawChain (sp< DrawI > a_spDrawI)
	Set next DrawI in a chain. More...

virtual sp< DrawI >	drawChain (void)

virtual void	setTransform (const SpatialTransform &a_rTransform)
	Impose a spatial translation. More...

virtual void	flushLive (void)
	Pass on current input data as is. More...

virtual void	clearInput (void)
	Reset the current input queue. More...

virtual BWORD	empty (void) const
	Returns TRUE if the current input queue is empty. More...

virtual void	drawPoints (const SpatialVector vertex, const SpatialVector normal, U32 vertices, BWORD multicolor, const Color *color)
	Draw points vertex[vertices]. More...

virtual void	drawLines (const SpatialVector vertex, const SpatialVector normal, U32 vertices, StripMode strip, BWORD multicolor, const Color *color)
	Draw lines. More...

virtual void	drawTriangles (const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color)
	Draw triangles. More...

Public Member Functions inherited from fe::Initialized
void	initializeAll (void)

void	setActive (bool a_active)

Public Member Functions inherited from fe::Component
const String &	name (void) const
	Return the components chosen name. More...

const String	verboseName (void) const
	Return the annotated chosen name. More...

void	setName (const String &name)
	Rename the component to anything you want. More...

hp< Registry >	registry (void) const
	Get the Registry that created this component. More...

void	adjoin (sp< Component > spComponent)
	Tie this component's lifetime to another. More...

sp< Component >	create (const String &implementation, BWORD quiet=FALSE) const
	Convienience function to registry()->create() More...

void	disjoin (void)
	Untie component from Hub, if connected. More...

String	factoryName (void)

void	setLibrary (sp< Library > spLibrary)
	Store a reference to the library used to instantiate this component. More...

sp< Library >	library (void)
	Get the library that created the component. More...

void	setFactoryIndex (I32 a_factoryIndex)
	Set the library's factory index. More...

I32	factoryIndex (void)
	Get the library's factory index. More...

void	setSingleton (BWORD set)
	Specify whether component is a singleton. More...

BWORD	isSingleton (void)
	Return whether component is a singleton. More...

virtual void	acquire (void)
	Specialized reference increment. More...

virtual void	release (void)
	Specialized reference decrement. More...

Public Member Functions inherited from fe::Handled< Component >
const hp< Component > &	getHandle (void) const
	Get a safe handle to this object. More...

Public Member Functions inherited from fe::Protectable
virtual I32	protection (void) const

virtual void	protect (void)

virtual void	unprotect (void)

virtual Protectable *	clone (Protectable *pInstance=NULL)

Public Member Functions inherited from fe::Counted
virtual void	acquire (int &rCount)
	Increment the reference count (and get the count) More...

virtual void	abandon (void)
	Decrement the reference count. More...

int	count (void) const
	Return the count of references. More...

void	setName (const String &)

void	trackReference (void *pReference, String what)

void	untrackReference (void *pReference)

void	registerRegion (void *pT, U32 bytes)

Protected Member Functions
virtual void	createDefaultView (void)

virtual void	drawPolys (U32 grain, const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color, const Array< I32 > vertexMap, const Array< I32 > hullPointMap, const Array< Vector4i > *hullFacePoint, sp< DrawBufferI > spDrawBuffer)

virtual void	drawLinesInternal (const SpatialVector vertex, const SpatialVector normal, const Vector2 texture, U32 vertices, StripMode strip, BWORD multicolor, const Color color, BWORD multiradius, const Real radius, const Vector3i element, U32 elementCount, sp< DrawBufferI > spDrawBuffer)

sp< Texture >	createTexture (void)

sp< Texture >	getTexture (GLsizei a_width, GLsizei a_height, GLenum a_format, GLenum a_type, const GLvoid *a_pData, I32 a_serial)

void	assureFont (void)

void	threadLock (void)

void	threadUnlock (void)

void	bindTexture (sp< ImageI > spImageI, I32 imageID)

void	drawCylinderGLU (const SpatialTransform &transform, const SpatialVector *scale, Real baseScale, const Color &color, U32 slices)

void	drawSphereGLU (const SpatialTransform &transform, const SpatialVector *scale, const Color &color)

void	beginArrays (const SpatialVector vertex, const SpatialVector normal, const Array< I32 > vertexMap, const Vector2 texture, U32 vertices, BWORD multicolor, const Color *color, sp< DrawBufferI > spDrawBuffer, BWORD normals, BWORD blending)

void	endArrays (const Array< I32 > vertexMap, const Vector2 texture, BWORD multicolor, const Color *color, sp< DrawBufferI > spDrawBuffer, BWORD normals)

void	setupLights (void)

void	createDefaultTexture (void)

void	useDefaultTexture (void)

void	pushAntialiasPoints (void)

void	pushAntialiasLines (void)

void	pushBlending (void)

void	activateBlending (void)

void	queryFormat (sp< ImageI > spImageI, GLenum &format, GLenum &type, GLint &components)

void	setup (DrawMode::DrawStyle style, BWORD lit, BWORD dual, BWORD texture, BWORD frontcull, BWORD backcull, BWORD zBuffer)

Protected Member Functions inherited from fe::ext::DrawCommon
DrawMode::DrawStyle	drawStyle (void) const

sp< ImageI >	textureImage (void) const

I32	textureImageID (void) const

Real	pointSize (void) const

Real	lineWidth (void) const

BWORD	antialias (void) const

BWORD	frontfaceCulling (void) const

BWORD	backfaceCulling (void) const

BWORD	twoSidedLighting (void) const

BWORD	zBuffering (void) const

BWORD	isLit (void) const

BWORD	isUvSpace (void) const

Protected Member Functions inherited from fe::Initialized
void	addInitializer (InitializeFunction function)

Protected Member Functions inherited from fe::Handled< Component >
void	abandonHandle (void)

Protected Member Functions inherited from fe::Counted
int	releaseInternal (void)
	Decrement the reference count. More...

void	suppressReport (void)

Static Protected Member Functions
static void	checkForError (String a_location)

Protected Attributes
sp< ImageI >	m_spCurrentTexture

I32	m_currentTextureId

Real	m_multiplication

BWORD	m_isDirect

BWORD	m_lockThreads

GLUquadric *	m_pQuadric

sp< Texture >	m_spDefaultTexture

GLubyte	m_defaultTextureData [DGL_DEFAULT_TEXTURE_SIZE][DGL_DEFAULT_TEXTURE_SIZE][3]

std::map< const void *, sp< Texture > >	m_textureTable

sp< FontI >	m_spFont

Protected Attributes inherited from fe::ext::DrawCommon
sp< ViewI >	m_spDefaultView

Real	m_brightness

Real	m_contrast

Additional Inherited Members
Public Types inherited from fe::ext::DrawI
enum	StripMode { e_discrete, e_strip, e_fan, e_triple }
	Format of vertices for tri-stripping. More...

enum	MatrixMode { e_modelview, e_projection, e_texture, e_color }

Static Public Member Functions inherited from fe::Counted
static String	reportTracker (void)

static U32	trackerCount (void)

Protected Types inherited from fe::Initialized
typedef void(*	InitializeFunction) (Initialized *)

Related Functions inherited from fe::Component
FE_DL_EXPORT void FE_CDECL	checkUnload (sp< Library > &pLibrary, Component *pComponent=NULL)
	Delete the component and unload libraries where appropriate. More...

Detailed Description

OpenGL-specific implementations for DrawI.

Member Function Documentation

◆ drawAlignedText()

void fe::ext::DrawOpenGL::drawAlignedText	(	const SpatialVector &	location,
		const String	text,
		const Color &	color
	)

virtual

Draw screen-aligned single color text.

Text is drawn at the given location, transformed and projected by the current state of the underlying graphics system.

Reimplemented from fe::ext::DrawCommon.

◆ drawRectangles()

void fe::ext::DrawOpenGL::drawRectangles	(	const SpatialVector *	vertex,
		U32	vertices,
		BWORD	multicolor,
		const Color *	color
	)

virtual

Draw rectangles.

Uses vertices and colors as explained in drawPoints.

Rectangles are never stripped.

Reimplemented from fe::ext::DrawCommon.

◆ flush()

void fe::ext::DrawOpenGL::flush ( void )

virtual

Called once after each frame.

This shifts data access to freeze the current input buffer and prepare a new empty input buffer.

The resulting output buffer is sent on to the next DrawI interface.

Reimplemented from fe::ext::DrawCommon.

Reimplemented in fe::ext::DrawHydra.

References fe::errorString(), and fe::ext::DrawNull::view().

Referenced by fe::ext::DrawHydra::flush().

◆ font()

virtual sp<FontI> fe::ext::DrawOpenGL::font ( void )

inlinevirtual

Get current font.

Reimplemented from fe::ext::DrawCommon.

References fe::ext::DrawCommon::drawLines(), fe::ext::DrawCommon::drawPoints(), and fe::ext::DrawCommon::drawTriangles().

◆ isDirect()

virtual BWORD fe::ext::DrawOpenGL::isDirect ( void ) const

inlinevirtual

Returns TRUE is display is local and rendered directly.

Reimplemented from fe::ext::DrawCommon.

◆ multiplication()

Real fe::ext::DrawOpenGL::multiplication ( void )

virtual

Select the GL-specific index/handle.

An index of 0 indicates no font. upscaling preference, such as for high DPI

Reimplemented from fe::ext::DrawCommon.

◆ popMatrix()

void fe::ext::DrawOpenGL::popMatrix ( MatrixMode a_mode )

virtual

pop the top 4x4 matrix from a particular stack

Reimplemented from fe::ext::DrawCommon.

◆ popMatrixState()

void fe::ext::DrawOpenGL::popMatrixState ( void )

virtual

Pop transform matrices.

Reimplemented from fe::ext::DrawCommon.

◆ pushMatrix()

void fe::ext::DrawOpenGL::pushMatrix	(	MatrixMode	a_mode,
		Real	a_values[16]
	)

virtual

push a new 4x4 matrix on a particular stack

Reimplemented from fe::ext::DrawCommon.

◆ pushMatrixState()

void fe::ext::DrawOpenGL::pushMatrixState ( void )

virtual

Push transform matrices.

Reimplemented from fe::ext::DrawCommon.

◆ setBrightness()

void fe::ext::DrawOpenGL::setBrightness ( Real a_brightness )

virtual

set additive lightening

Reimplemented from fe::ext::DrawCommon.

References fe::ext::DrawCommon::setBrightness().

◆ setContrast()

void fe::ext::DrawOpenGL::setContrast ( Real a_contrast )

virtual

set multiplicitive light scaling

Reimplemented from fe::ext::DrawCommon.

References fe::Registry::create(), fe::Component::registry(), and fe::ext::DrawCommon::setContrast().

◆ setDrawMode()

void fe::ext::DrawOpenGL::setDrawMode ( sp< DrawMode > mode )

virtual

Set rendering mode.

Reimplemented from fe::ext::DrawCommon.

◆ unbindVertexArray()

void fe::ext::DrawOpenGL::unbindVertexArray ( void )

virtual

currently, sets vertex array to zero in OpenGL

Reimplemented from fe::ext::DrawCommon.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ drawAlignedText()

◆ drawRectangles()

◆ flush()

◆ font()

◆ isDirect()

◆ multiplication()

◆ popMatrix()

◆ popMatrixState()

◆ pushMatrix()

◆ pushMatrixState()

◆ setBrightness()

◆ setContrast()

◆ setDrawMode()

◆ unbindVertexArray()
